EPIC OFFSHORE PERFORMANCE

With a rugged big water hull, the Alexis OS (Offshore) is a deep, wide, smooth-riding boat. With options like a full hard top and Alaskan bulkhead, it can be outfitted to meet all your fishing needs. Prepped for trolling, with welded downrigger pads, a deep cockpit, and the power to run safely to and from your preferred fishing grounds, this is the offshore aluminum boat of choice for guides and professionals.

GET A QUOTE
FIND DEALER
Download Alexis OS 22-24 Spec Sheet

FEATURES & SPECS

HIGHLIGHTS

  • Deepest, Widest, Best Riding, Big Water Hull
  • Full hard top option
  • Alaskan bulkhead option
  • Premium welded bow and aft welded rails
  • Premium comfortable seating
  • Extended running surface option

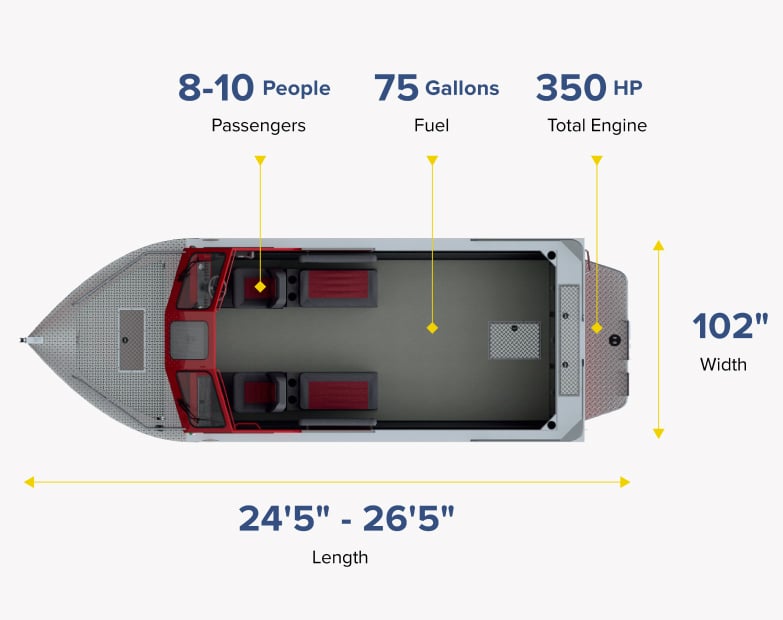

Base Boat Specifications - 22

Length 22'
L.O.A 24'5''
Beam Width 102''
Side Height 38''
Cockpit Depth 32''
Chine Width 88''
Bottom Width 93''
Minimum/Maximum HP 200/350
Max Persons Capacity 8
Fuel Capacity 75 USG
Motor Length 25''
Hull Deadrise 16° Progressive TJ-X High Performance Hull

Base Boat Specifications - 23

Length 23'
L.O.A 25'5''
Beam Width 102''
Side Height 38''
Cockpit Depth 32''
Chine Width 88''
Bottom Width 93''
Minimum/Maximum HP 200/350
Max Persons Capacity 9
Fuel Capacity 75 USG
Motor Length 25''
Hull Deadrise 16° Progressive TJ-X High Performance Hull

Basic Power

Mercury 200XL 4 Stroke (22'/23')

Mercury 225XL 4 Stroke (24')

Note: Does not include prop

Basic Trailer

Karavan 6000 lb. Galvanized Tandem Axle (22'/23')

Karavan 6900 lb. Galvanized Tandem Axle (24')

Bunk Trailer Includes:

Spring Suspension, 14" Aluminum Wheels (22'/23')

15" Aluminum Wheels (24')

Plastic Fenders w/Non-Skid Steps

Tongue Jack, Load Guides

Hydraulic Surge Disc Brakes

Spare Tire and Carrier

Standard Hull Features

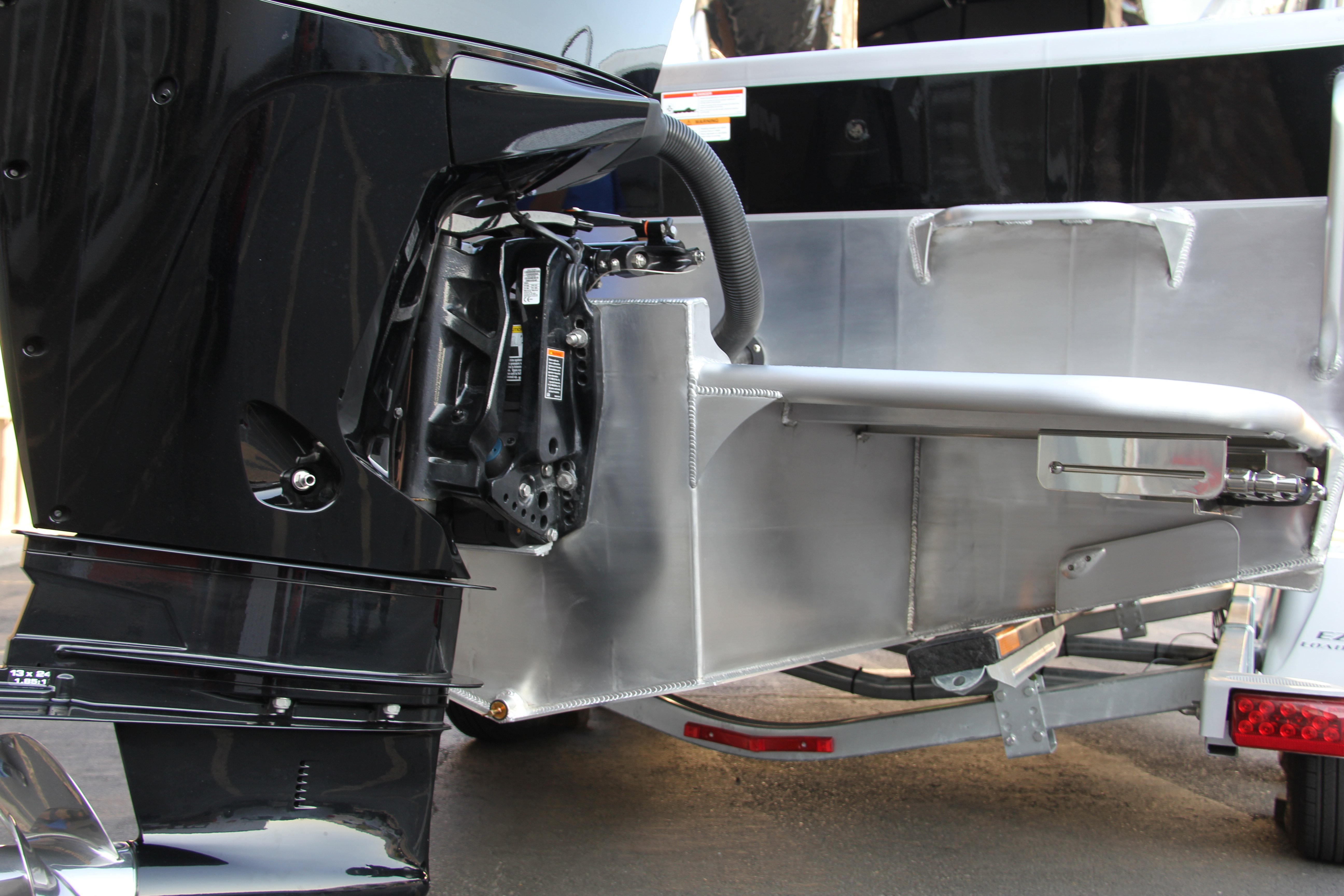

Extended Running Surface Bottom

One Piece Hull Sides / One Piece Bottom (22' only)

Progressive Offshore Hull w/Upswept Bow

Full-Length Engineered J-Stringers

(4) Full-Length Formed-In External Hull Stiffeners

Full-Length Offshore 5'' Reverse Chine

Fully Welded Heavy-Duty Keel Guard

Welded Thru-Hull Fittings

(5) Welded 8" Cleats (22'/23'), (7) Welded 8" Cleats (24')

Wide Formed Gunnels

Welded Bow & Transom Eyes

Welded 4'' High Bow Rails

Double Walled Self-Draining Diamond Tread Drop Bow

Large Fully Welded Bow Drains

Locking Self-Draining Bow Locker

Welded Full-Width Transom Platform w/Undermount Telescoping Ladder

Welded External Motor Bracket

Welded 6'' High Stern Rails

Welded Downrigger Mounting Pads

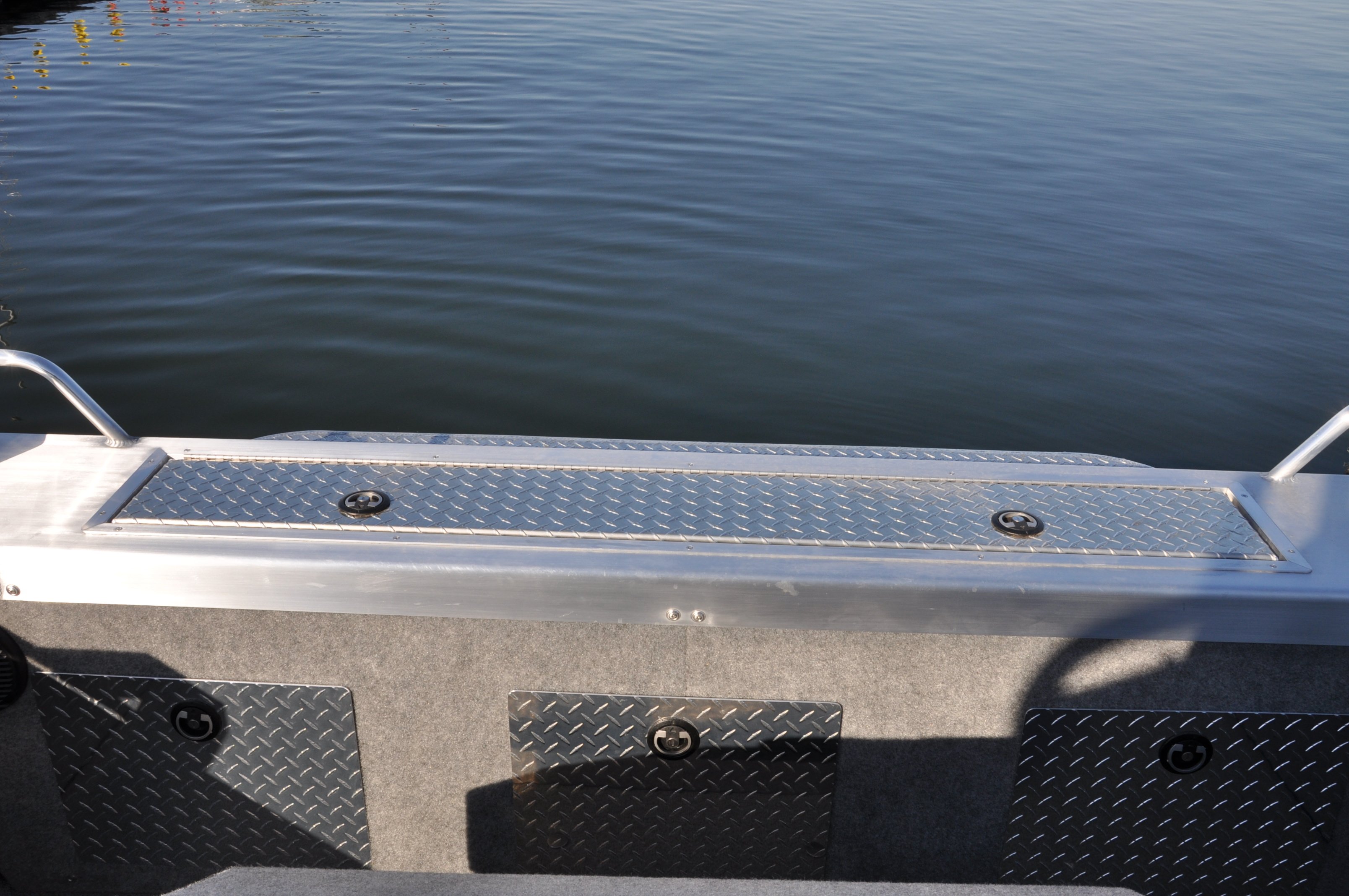

Transom Fish Locker w/HPDE Lid & Backsplash

Welded 5 Piece Walk-Thru Windshield

Standard Rigging Features

Analog Tach, Fuel, Trim & Hour Meter Instrumentation

Mechanical Shift/Throttle

Hydraulic Steering w/Tilt Helm

Premium Switch Panel & Electric Horn

Dual USB Charger

LED Navigation Lights Package

Premium Marine Wiring Harness w/Water Tight Connections

Transom Battery Tray

Electric Bilge Pump w/Auto Float Switch

Conduit Under Bow Deck for Running Wiring

Pantographic Self-Parking Driver Side Windshield Wiper

Base Boat Specifications - 24

Length 24'
L.O.A 26'5''
Beam Width 102''
Side Height 38''
Cockpit Depth 32''
Chine Width 88''
Bottom Width 93''
Minimum/Maximum HP 225/350
Max Persons Capacity 10
Fuel Capacity 75 USG
Motor Length 25''
Hull Deadrise 16° Progressive TJ-X High Performance Hull

Aluminum Thickness

Side 0.125'' / 5052 Aluminum Alloy
Bottom 0.190'' / 5086 Aluminum Alloy
Transom 0.250'' / 5052 Aluminum Alloy

Standard Interior Features

(2) TJ Seats on Pedestals w/Locking Swivel

Adjustable Driver’s Seat Slider

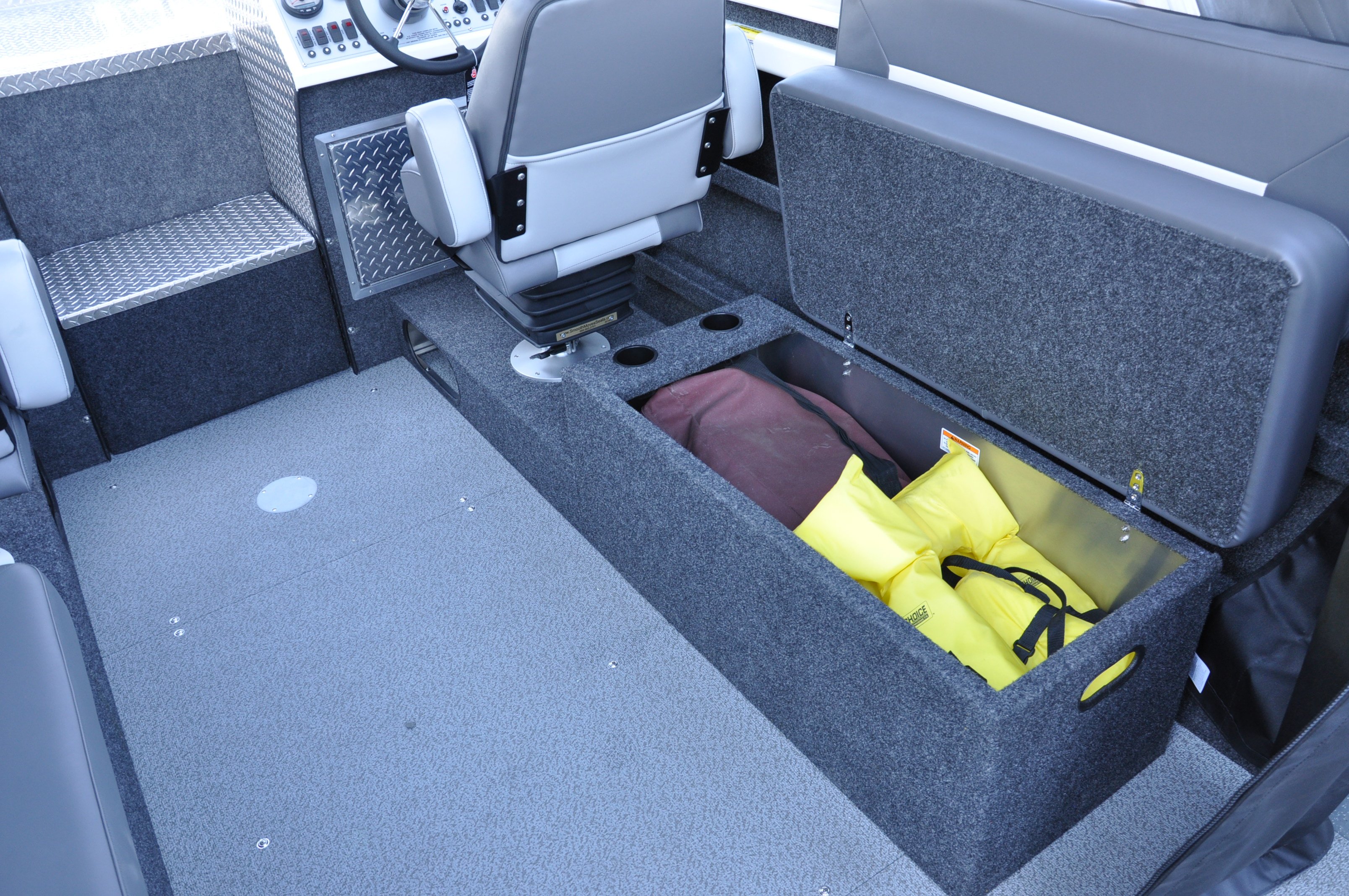

(2) 39" Storage Box Bench Seats w/Removable Backrests

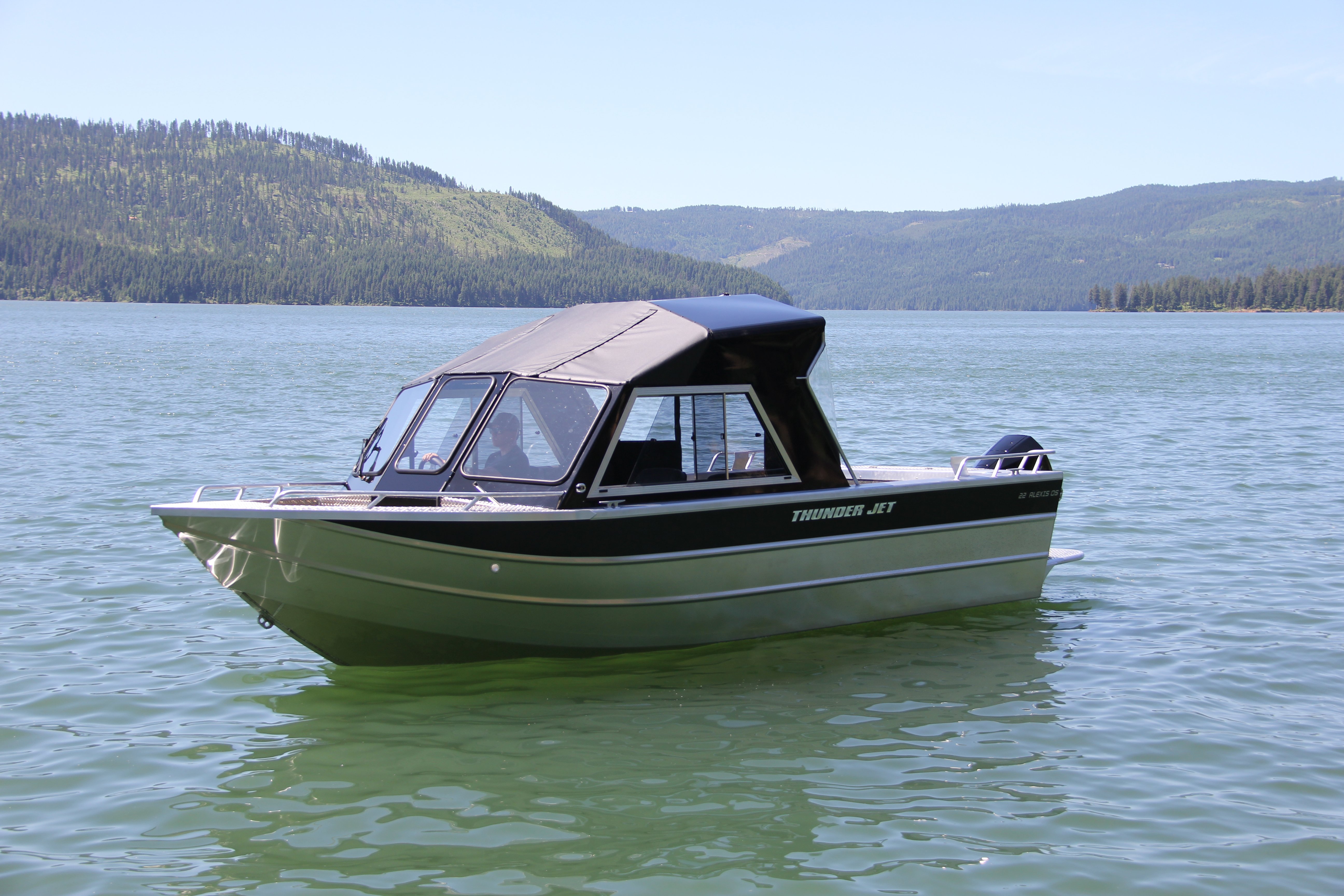

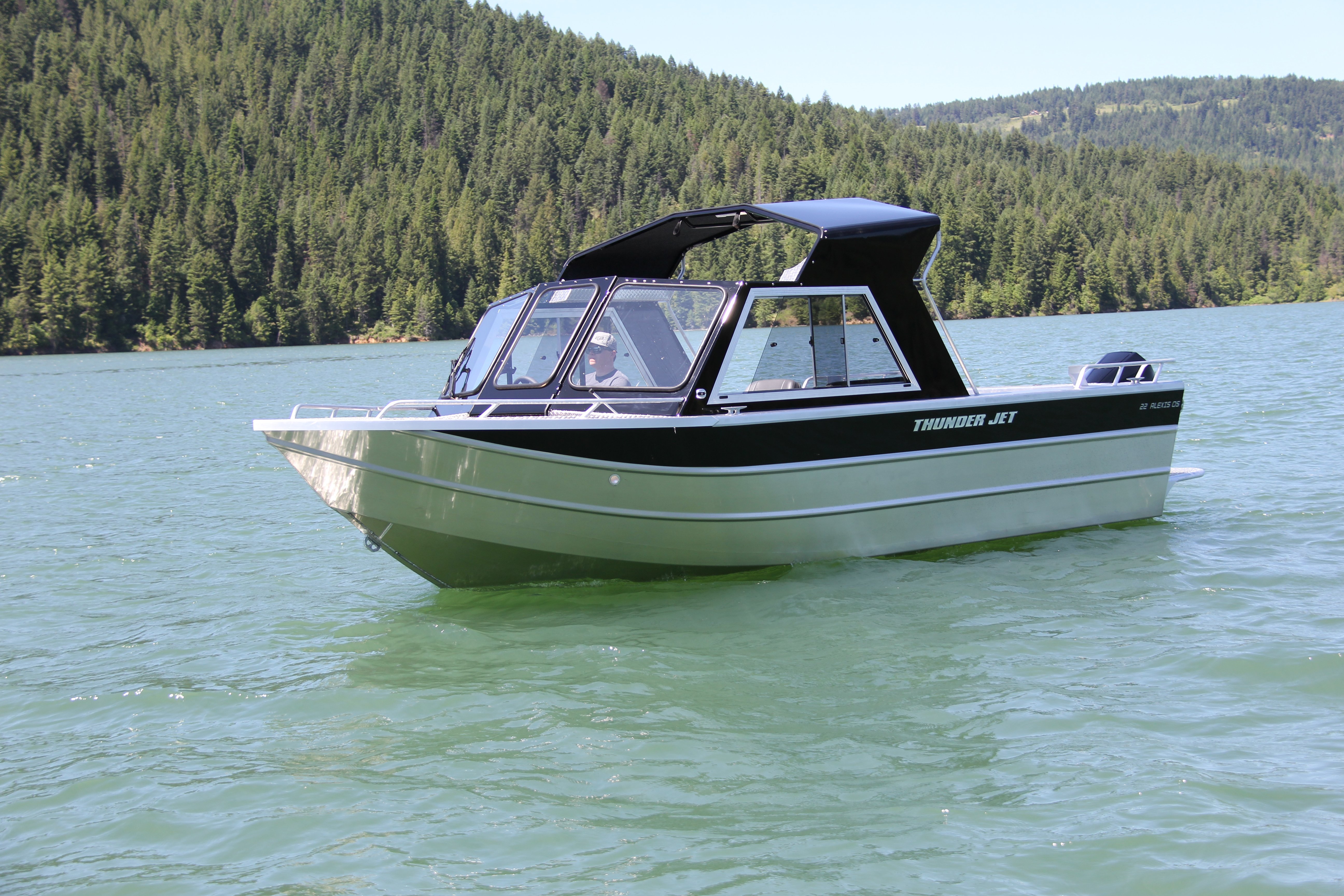

Folding Canvas Top w/Side Curtains, Aft Drop Curtain w/Roll-up Center Door, Travel Boot, and Heavy-Duty Square Tube Bows

Bulb Seal Along Forward Portions of All Canvas

Locking Glove Box

Under Dash Storage Tray

Stainless Steel Rubber Coated Steering Wheel

Welded Passenger Grab Rail

Welded High Mount Windshield Grab Rails

Locking Aft Cockpit Floor Storage Compartment

(3) Locking Interior Transom Access Hatches

Diamond Tread Bow Step w/Storage

(2) Full-Length Welded Side Storage Trays

(8) Cup Holders

Full Marine Carpeted Sound Dampening Side Walls

Premium Marine Vinyl Decking

Standard Color & Graphics

1/3 Hull Side Paint

Color Matched Painted Dash & Windshield

Raised Domed Logos

Flat Vinyl Model Designators

Optional Features

Multiple Hardtop Configurations

Additional In-Floor Storage

Angler’s Transom Fish Package

100 USG Fuel Tank

Self-Bailing Deck

Transom Door

See Dealer for Additional Options

EXTERIOR & STRUCTURE

Built to conquer the harshest environments & last a lifetime.

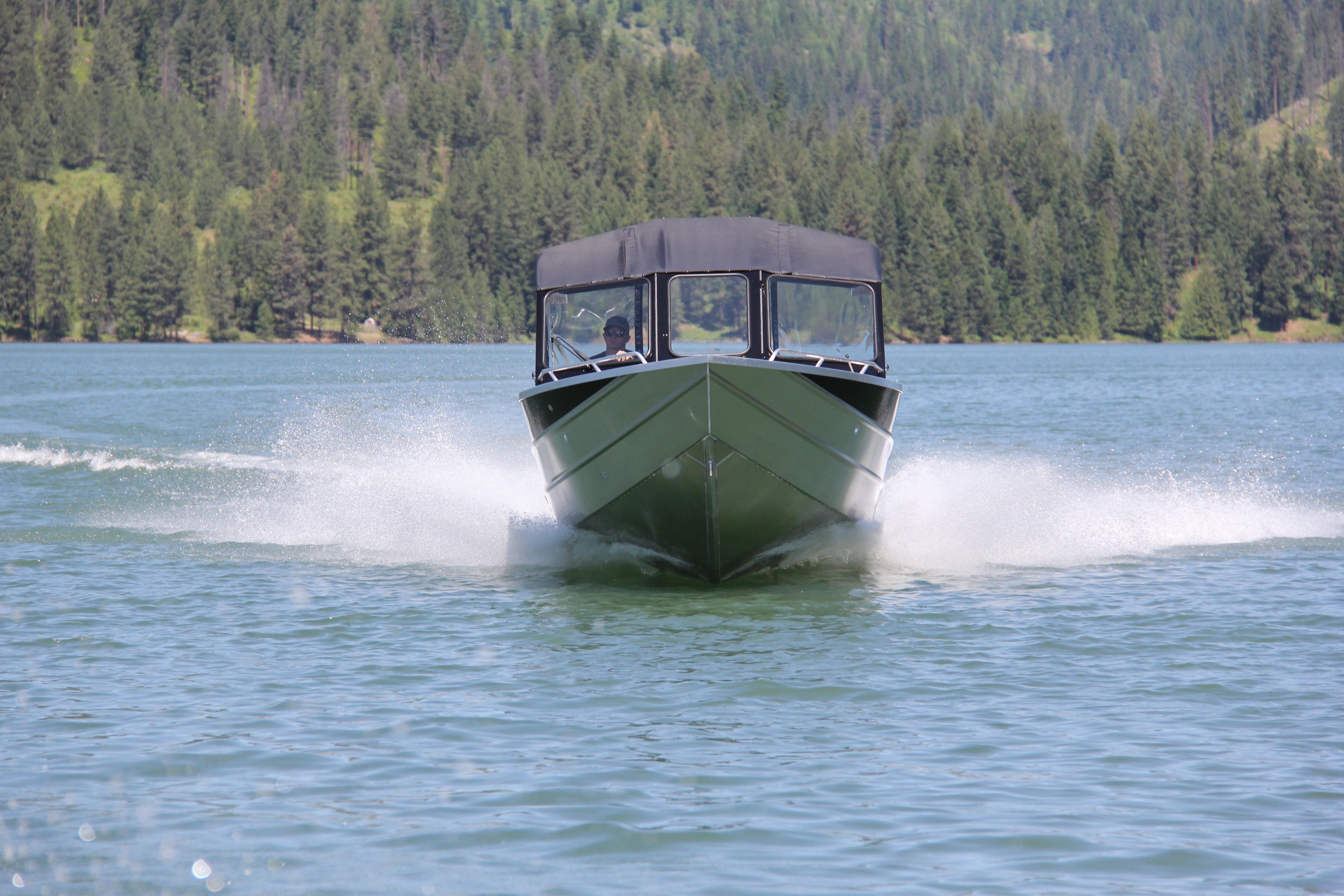

  1. Progressive offshore hull w/upswept bow & lifting strakes
  2. Exclusive tri-structure full length 5" reverse chines
  3. Welded 4"-high bow rails & 6"-high stern rails
  4. All-welded reinforced external motor mounting bracket

Progressive offshore hull w/upswept bow & lifting strakes

Exclusive tri-structure full length 5" reverse chines

Welded 4"-high bow rails & 6"-high stern rails

All-welded reinforced external motor mounting bracket

FISHING OPTIMIZED INTERIOR

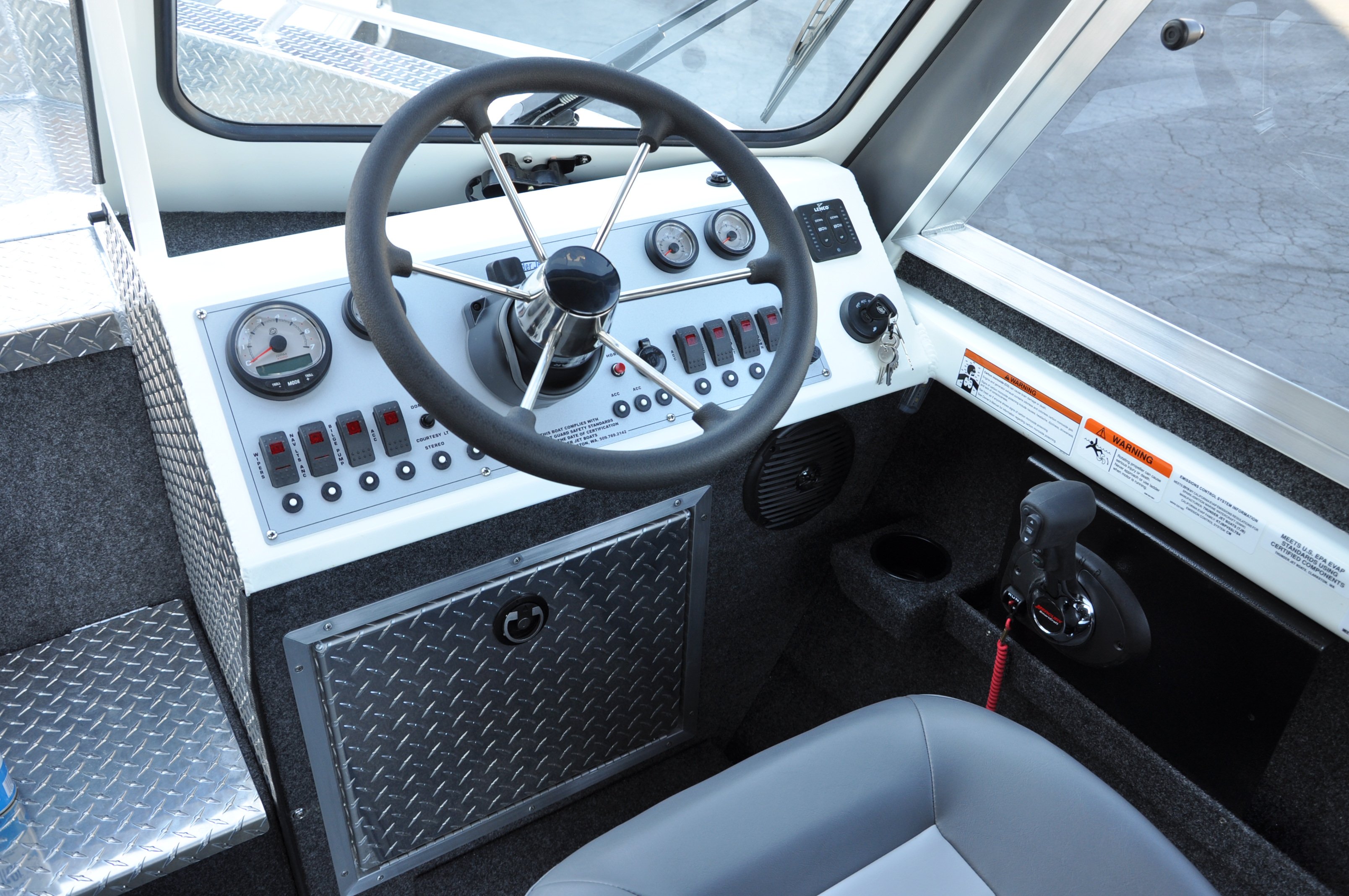

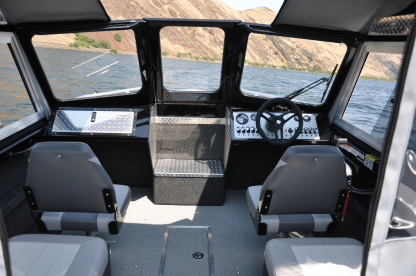

COMMAND CONSOLE

FISHERMAN'S TRANSOM

PREMIUM INTERIOR SEATING

COMMAND CONSOLE

FISHERMAN'S TRANSOM

PREMIUM INTERIOR SEATING

COMMAND CONSOLE

FISHERMAN'S TRANSOM

PREMIUM INTERIOR SEATING

Gallery (34 images)

MAKE IT YOUR OWN

Customize your Alexis OS to be the perfect boating experience.

Interior

Seating Options

Upgraded fish seats (helm & passenger)

Fish seat arm rests (PR)

Suspension seat (EA)

Shock absorber seat pedestal (EA)

Smooth Moves seat pedestal (EA)

Heated seat (EA)

Bow folding seat

Bed rails

Aft storage bench seat cushions

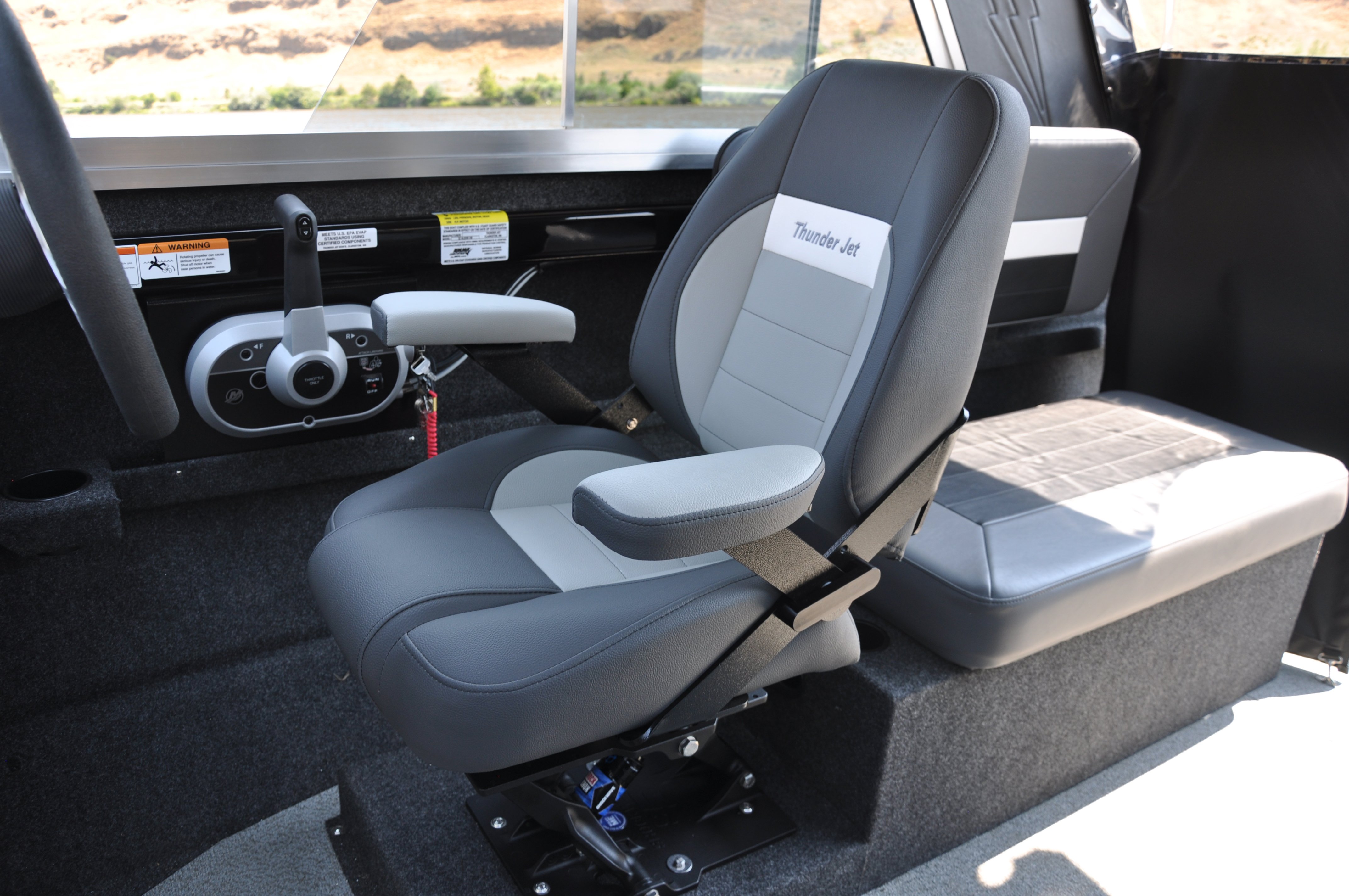

Shockwave suspension pedestal

Mechanical

Engine Rigging

Mercury analog/DTS pre-rig 1 eng/1 sta

Smartcraft gauge upgrade

VesselView® 502 upgrade single engine

Suzuki pre-rig analog 1 eng/1 station

Prop & PDI

Mercury analog/DTS pre rig 1 eng/2 sta

Exterior

Top / Cabin

1/2 hardtop

3/4 hardtop

Full hardtop

Hardtop vista windows

Gull-wing hatch

Hardtop side-mount rod holders

Hardtop center top-mount rod holders

Extended full hardtop

Alaskan bulkhead

Rear hardtop grab rail

Stern

Stern rail extensions w/downrigger corner pads

Additional downrigger mounting pads (x2)

Deluxe anglers package

Basic anglers package

Insulated transom fish box

Diamond tread fish box lid

3/4 Platform w/undermount ladder

Welded transom kicker bracket

Welded platform kicker bracket
