MAXIM CLASSIC JET

❮ ❯

JET POWERED PERFORMANCE

The Maxim Classic Jet is a big bodied, big river boat for the serious jet boater. Standard features include our exclusive tri-structure full length reverse chine hull with reinforced delta pad, high visibility cab-forward cabin design, and welded grab rails surrounding the deep cockpit. When you want to head upriver with all your friends and gear, this is the boat that will get you there and back safely with power and room to spare.

GET A QUOTE
FIND DEALER
Download Maxim Classic Jet Spec Sheet

FEATURES & SPECS

HIGHLIGHTS

  • Serious jet boat
  • Big river, big body boat
  • Extra wide beam
  • Premium welded bow and aft rails
  • Comfortable interior seating
  • Incredible fishing deck

Base Boat Specifications - 23

Length 23'
L.O.A 25'
Beam Width 108''
Side Height 37''
Cockpit Depth 25''
Chine Width 81.5''
Bottom Width 84''
Max Persons Capacity 9
Fuel Capacity 103 USG
Hull Deadrise 14 Degrees

Aluminum Thickness

Side 0.125'' / 5052 Aluminum Alloy
Bottom 0.190'' / 5086 Aluminum Alloy
Transom 0.190'' / 5052 Aluminum Alloy

Standard Power

KEM 7.4L V8 LSX 500 HP w/Closed Cooling System

Hamilton Jet 214 Axial Flow Jet Pump w/JT Nozzle, Split Duct Reverse, Drive Line & Turbo Impeller

Standard Trailer

Gateway Galvanized Tandem Axle

Bunk Trailer Includes:

Welded Frame Construction

Welded Bunks w/UHMW Slides

Fenders w/ Extra Large Non-Skid Steps

Tongue Jack

Chine Load Guides

15" Wheels

Spare Tire w/Mount

Electric Brakes

Bow "V" Block & Winch Mast

Standard Hull Features

Full-Length Engineered J-Stringers

(4) Full-Length Formed-In External Hull Stiffeners

Exclusive Tri-Structure Full Length Reverse Chine

Reinforced Delta pad

Performance Lifting Strakes

Fully Welded Heavy-Duty Keel Guard

Welded Thru-Hull Fittings

(5) Welded 8" Cleats (23'), (7) Welded 8" Cleats (24')

Wide Formed Gunnels

Welded Bow & Transom Eyes

Welded 4'' High Bow Rails

Welded 3/4 Hard Top w/Lockable Sliding Side Windows

High Visibility Cab Forward Cabin Design

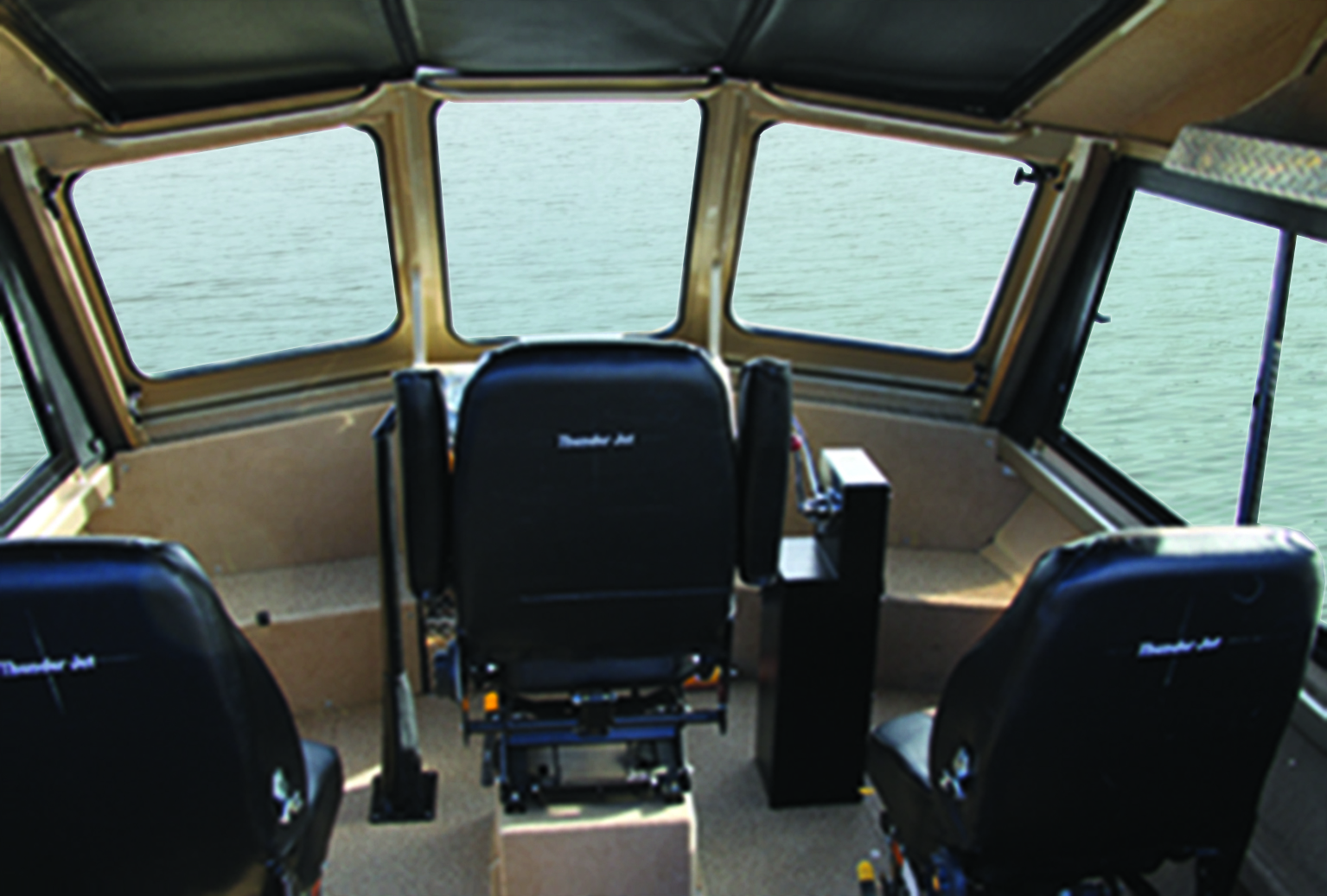

Center Console Layout w/Stick Steering

Double Walled Self-Draining Diamond Tread Drop Bow

Large Fully Welded Bow Drains

Locking Self-Draining Bow Locker

Welded Full-Width Transom Platform w/Telescoping Ladder & Pump Protector

Raised Aft Deck w/Welded 32" Wrap-Around Stern Rails w/6 Welded Rod Holders(3 per side)

Fish Deck Storage Step Compartment

(2) Removable Downrigger Mounting Pads

Welded 3 Piece Walk-Thru Windshield

Locking Transom Fish Box w/Diamond Lid

Standard Rigging Features

Analog Tach, Fuel, Volt, Oil Pressure & Temp Instrumentation

Mechanical Throttle/Shift

Back Mount Single Cable Steering System

Premium Switch Panel & Electric Horn

Dual USB Power Point

LED Navigation Lights Package

LED Interior Lighting

LED Cockpit Flood Light

Premium Marine Wiring Harness w/Watertight Connections

Safety Hub Power Distribution Block

4-Way Selector Battery Switch

Automatic 2 Bank Battery Charger

Electric Bilge Pump w/Auto Float Switch

Motor Compartment Blower

Conduit Under Bow Deck for Running Wiring

High Pressure Wash Down System

Pantographic Self-Parking Driver & Passenger Side Windshield Wipers

Base Boat Specifications - 24

Length 24'
L.O.A 26'
Beam Width 108''
Side Height 37''
Cockpit Depth 25''
Chine Width 81.5''
Bottom Width 84''
Max Persons Capacity 10
Fuel Capacity 103 USG
Hull Deadrise 14 Degrees

Standard Interior Features

(3) Shockwave Suspension w/TJ Premium Seats

(2) 39" Storage Box Bench Seats w/Removable Backrests

(2) Corner Rail Seats

Bed Rail Bench Seat to Bunk Conversion Kit

Drop Curtain for Hard Top w/Roll Up Center Door

Heavy Duty Canvas Stern Cover

4 Panel EZ Access Front Canvas Driver/Passenger Cover

Bulb Seal Along Forward Portions of All Canvas

(2) Locking Glove Boxes

Welded Passenger Grab Rail

Welded High Mount Windshield Grab Rails

(2) Full-Length Welded Side Storage Trays

(12) Cup Holders

Porta Potti w/Privacy Curtain

Removable Pedestal Table

2 Speed Premium Heater/Defroster

Stereo w/4 Speakers

Full Marine Carpeted Sound Dampening Side Walls

Premium Marine Vinyl Decking

Standard Color & Graphics

1/3 Hull Side Paint w/Upgraded Graphics Package

Color Matched Painted Dash & Windshield

3D Chrome Logos

Flat Vinyl Model Designators

Optional Features

See Dealer for Additional Options

EXTERIOR & STRUCTURE

Built to conquer the harshest environments & last a lifetime.

  1. Welded 3-piece tempered safety glass walk-through windshield
  2. Welded 4''-high bow rails and 32" Stern Rails
  3. Welded full-width transom platform w/telescoping ladder
  4. Exclusive tri-structure hull w/full length reverse chine

Welded 3-piece tempered safety glass walk-through windshield

Welded 4''-high bow rails and 32" Stern Rails

Welded full-width transom platform w/telescoping ladder

Exclusive tri-structure hull w/full length reverse chine

FISHING OPTIMIZED INTERIOR

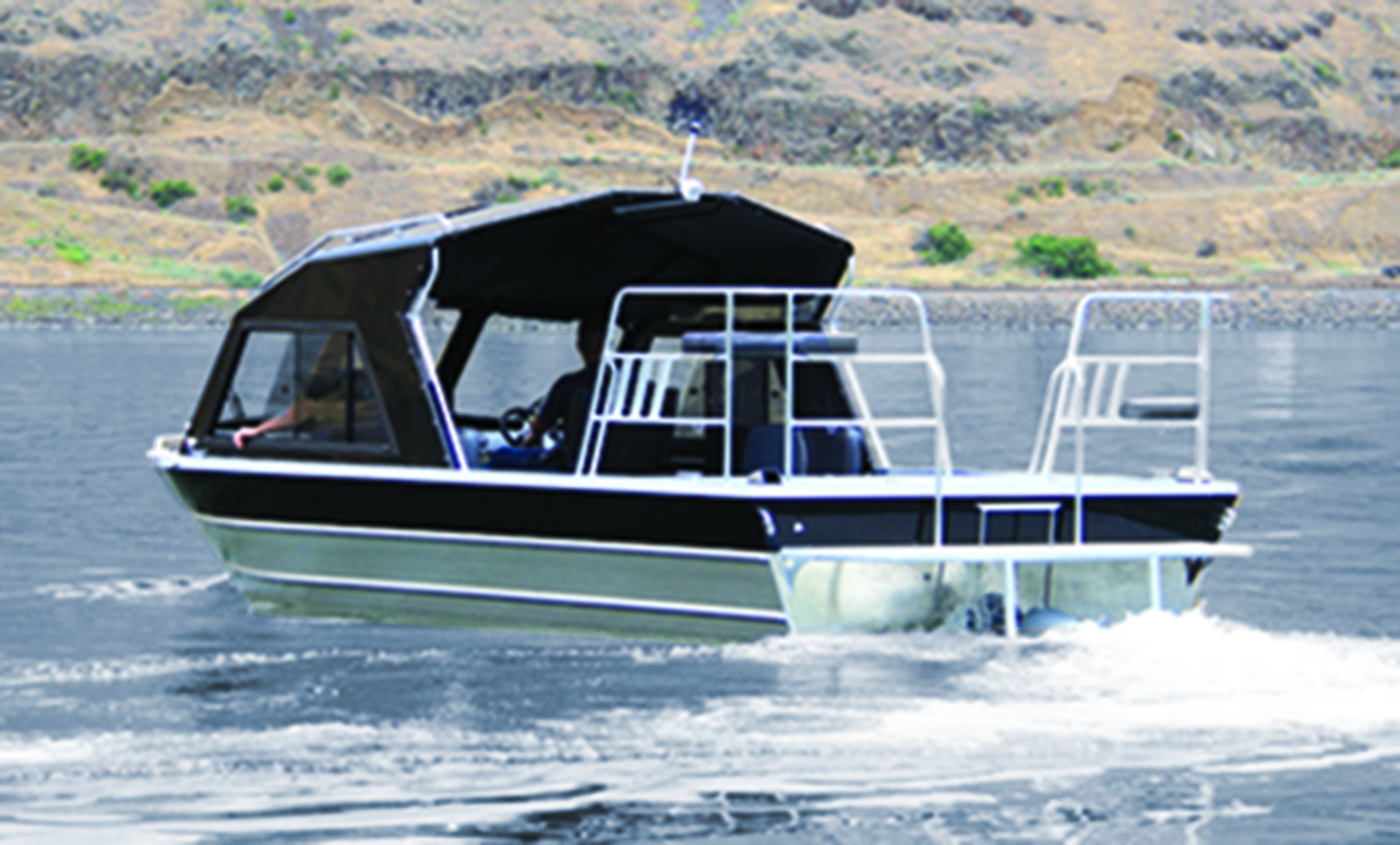

FISHING DECK

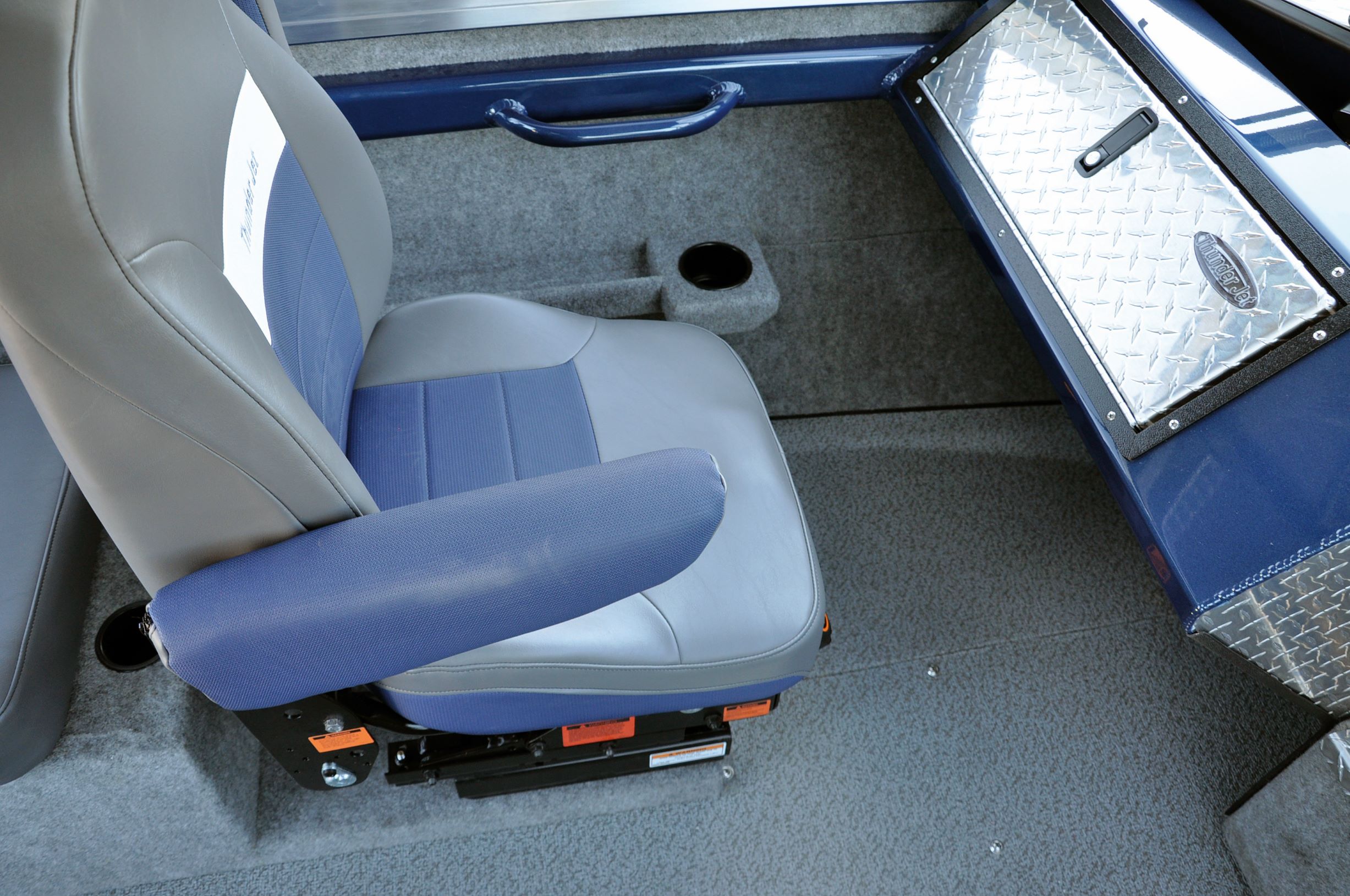

SUSPENSION SEAT

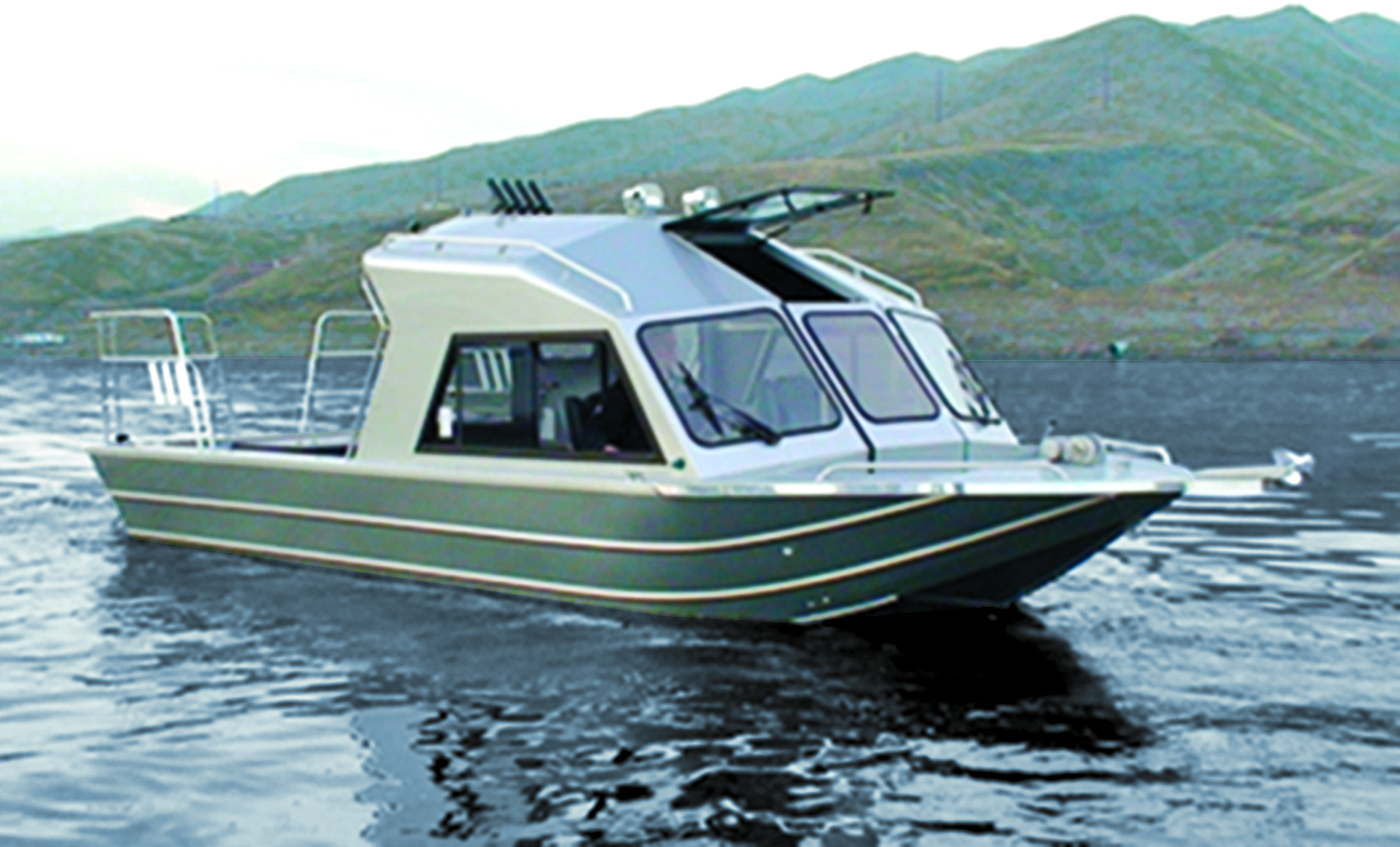

GULL WING HATCH

FISHING DECK

SUSPENSION SEAT

GULL WING HATCH

FISHING DECK

SUSPENSION SEAT

GULL WING HATCH

Gallery (9 images)

MAKE IT YOUR OWN

Customize your Maxim Classic Jet to be the perfect boating experience.

Interior

Seating Options

Heated seat (EA)
Bow folding seat

Mechanical

Engine

KEM 6.2L V8 VVT DI 400 hp

KEM 7.4L V8 LSX 510 HP

Mercury 6.2L V8 Jet ECT 370 hp

Exterior

Top / Cabin

Full hardtop
Gull-wing hatch
Hardtop side-mount rod holders
Hardtop center top-mount rod holders

Alaskan bulkhead

Hardtop angled top mount rod holders

Stern

Insulated transom fish box
Diamond tread fish box lid
3/4 Platform w/undermount ladder
Welded transom kicker bracket
3/4 Platform w/swim step & undermount ladder

Loose platform kicker bracket

Welded pump guard
