185 LUXOR

❮ ❯
asset1
asset2
asset3
asset4
asset5

THE ADVENTURE-STARTER

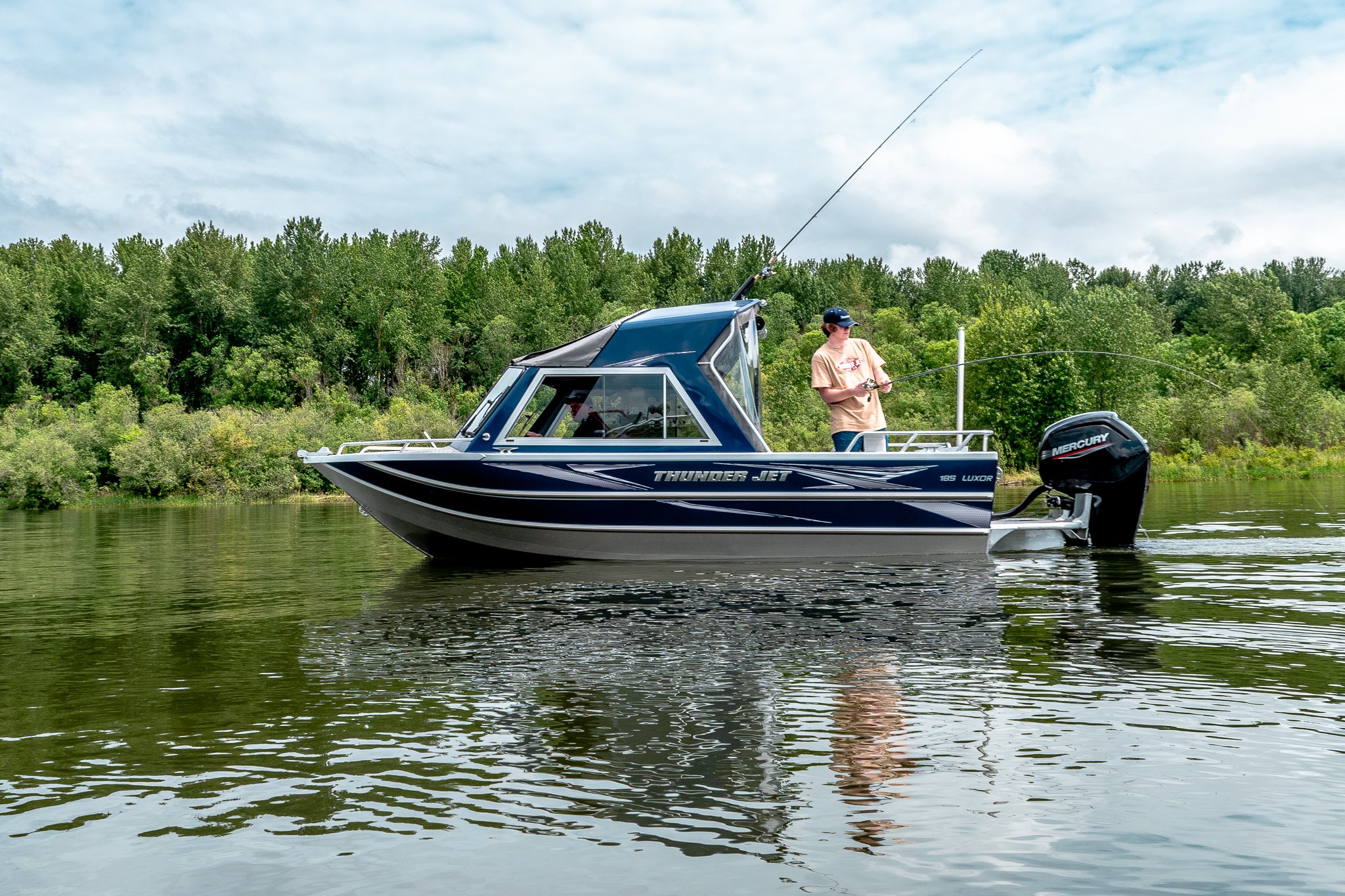

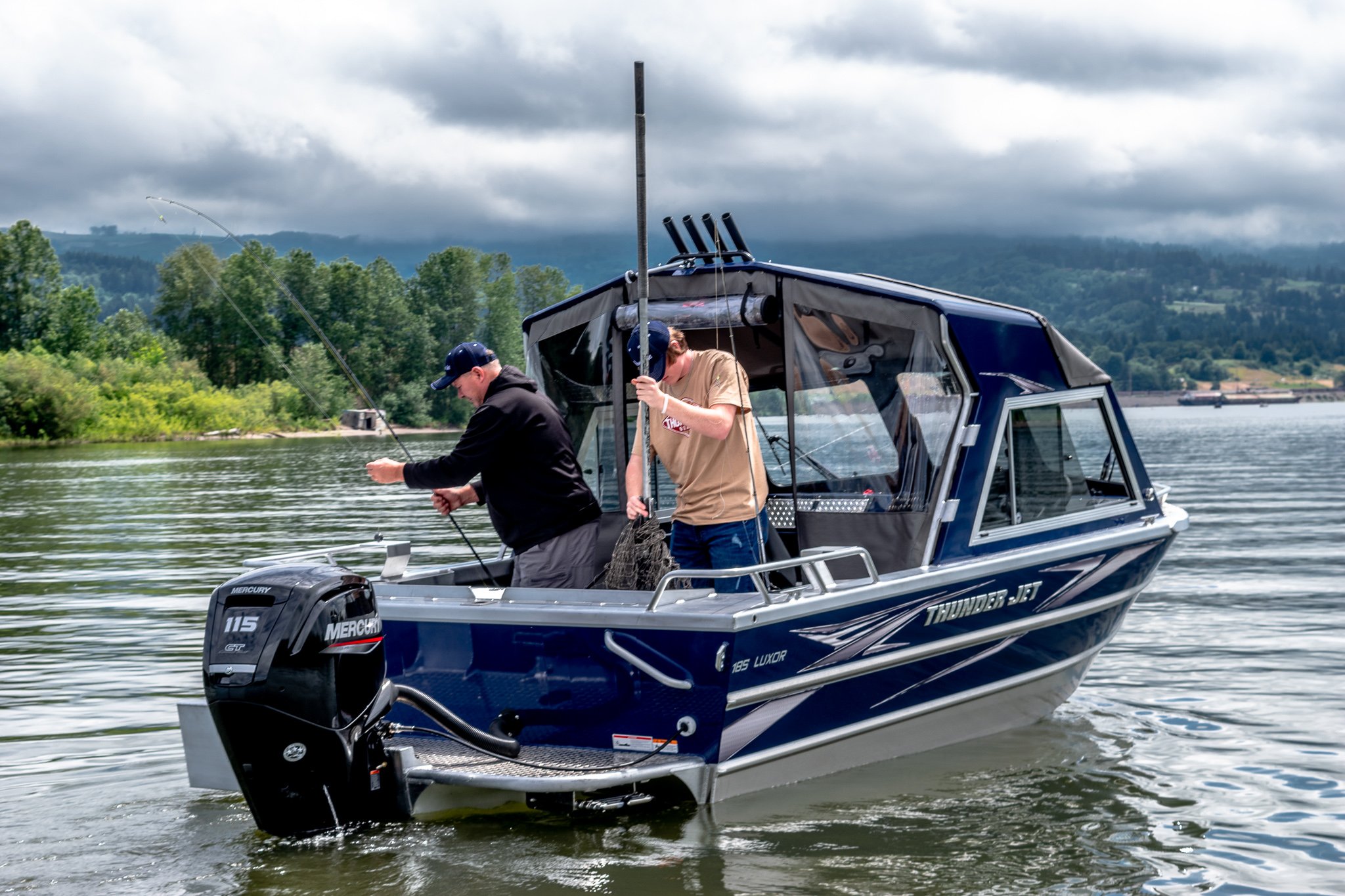

Wide, deep, and fearless, the 185 Luxor heavy-gauge aluminum fishing boat offers great value without sacrificing quality, performance, or features. The wide, welded bench seats open to reveal roomy storage, and welded, full-width transom platform features an undermount, telescoping ladder. Built with our industry-exclusive tri-structure reverse chine hull with delta keel bottom, it’s ready for anything.

GET A QUOTE
FIND DEALER
Download Luxor 185 Spec Sheet

FEATURES & SPECS

HIGHLIGHTS

  • Big on value
  • Built with the Fisherman in mind
  • Extra wide and deep platform
  • Made to tame big water
  • Motor mount set back platform
  • Spacious cockpit
created by dji camera

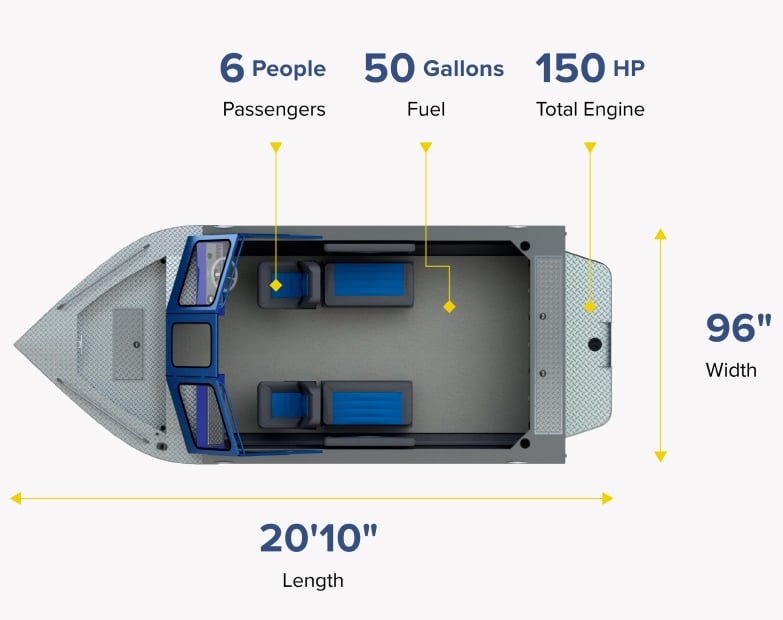

Base Boat Specifications

Length 18'5''
L.O.A 20'10''
Beam Width 96"
Side Height 34.5''
Cockpit Depth 28.5''
Chine Width 80''
Bottom Width 84''
Minimum/Maximum HP 115/150
Max Persons Capacity 6
Fuel Capacity 50 USG
Motor Length 25''
Hull Deadrise All New 16° Progressive

Standard Color & Graphics

Color Matched Painted Dash & Windshield
Raised Domed Logos
Flat Vinyl Model Designators

Standard Hull Features

Extended Running Surface Bottom

One Piece Hull Sides / One Piece Bottom

Full-Length Engineered Box Stringers

(4) Full Length Formed-In External Hull Stiffeners

Full Length 5'' Reverse Chine

Fully Welded Heavy-Duty Keel Guard

Welded Thru-Hull Fittings

(5) Welded 8'' Cleats

Wide Formed Gunnels

Welded Bow & Transom Eyes

Welded 4'' High Bow Rails

Double Walled Self-Draining Diamond Tread Drop Bow

Large Fully Welded Bow Drains

Welded Full-Width Transom Platform w/Undermount Telescoping Ladder

Welded External Motor Bracket

Rear Fill Gas Tank

Transom Fish Locker w/HDPE Lid & Backsplash

Transducer Mounting Bracket

Welded 5 Piece Walk-Thru Windshield

Optional Features

Multiple Hard Top Configurations

Additional In-Floor Storage

Angler’s Transom Fish Package

Washdown

Ski Pylon

Multiple Paint & Graphics Configurations

See Dealer for Additional Options

Aluminum Thickness

Side 0.125'' / 5052 Aluminum Alloy
Bottom 0.190'' / 5086 Aluminum Alloy
Transom 0.250'' / 5052 Aluminum Alloy

Basic Trailer

EZ Loader 3100 lb. Capacity Galvanized Single Axle

Bunk Trailer Includes:

Spring Suspension
14" Wheels
(2) Carpeted Bunks w/ Slick Bunk Caps
Tongue Jack
Hydraulic Surge Disc Brakes

Chine Guides

Spare Tire and Carrier

Basic Power

Mercury 115EXLPT EFI 4 Stroke
Note: Does not include prop

Standard Rigging Features

Analog Tach, Fuel, Trim & Hour Meter Instrumentation

Mechanical Throttle/Shift

No Feedback Single Cable Steering System

Premium Switch Panel & Electric Horn

Dual USB Charger

LED Navigation Lights Package

Premium Marine Wiring Harness w/Water Tight Connections

Electric Bilge Pump w/Auto Float Switch

Conduit Under Bow Deck for Running Wiring

Pantographic Self-Parking Driver Side Windshield Wiper

Standard Interior Features

(2) Folding Fish Seats on Locking Swivels

Adjustable Driver’s Seat Slider

(2) 36" Storage Box Bench Seats w/ Removable Backrests

Folding Canvas Top w/Side Curtains, Aft Drop Curtain w/Roll-up Center Door, Travel Boot, and Heavy-Duty Square Tube Bows

Open Glove Box

Sport Steering Wheel

Welded Passenger Grab Rail

Welded High Mount Windshield Grab Rails

(3) Locking Interior Transom Access Hatches

Diamond Tread Bow Step w/ Storage Box

Under Dash Storage Trays

(2) Full Length Welded Side Storage Trays

(8) Cup Holders

Full Marine Carpeted Sound Dampening Side Walls

Premium Marine Vinyl Decking

EXTERIOR & STRUCTURE

Built to conquer the harshest environments & last a lifetime.

  1. Welded 4''-high grab rails for rough-water security
  2. Double walled self-draining diamond tread drop bow
  3. Exclusive all-welded tri-structure reverse-chine hull w/lifting strakes

Welded 4''-high grab rails for rough-water security

Double walled self-draining diamond tread drop bow

Exclusive all-welded tri-structure reverse-chine hull w/lifting strakes

FISHING OPTIMIZED INTERIOR

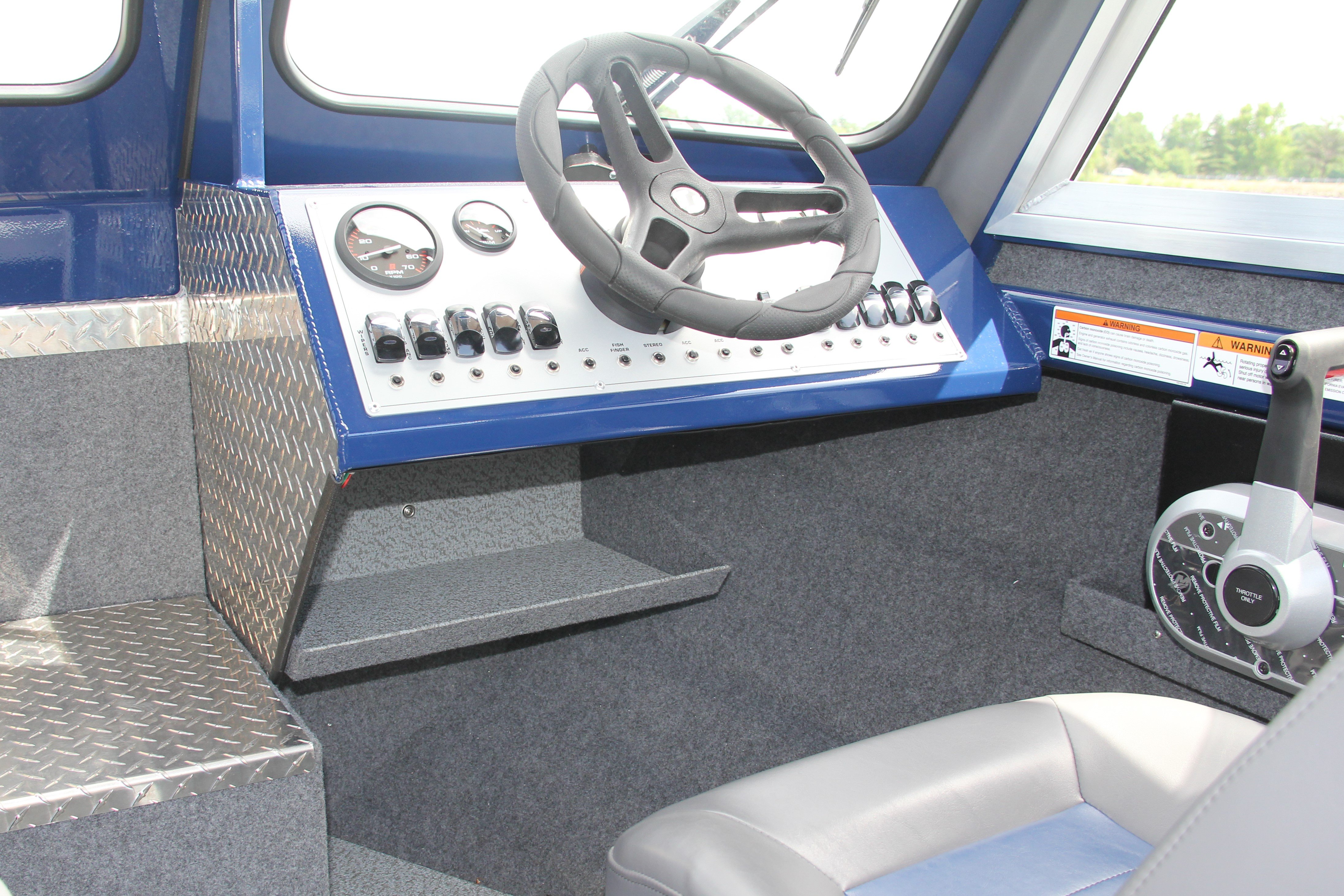

COMMAND CONSOLE

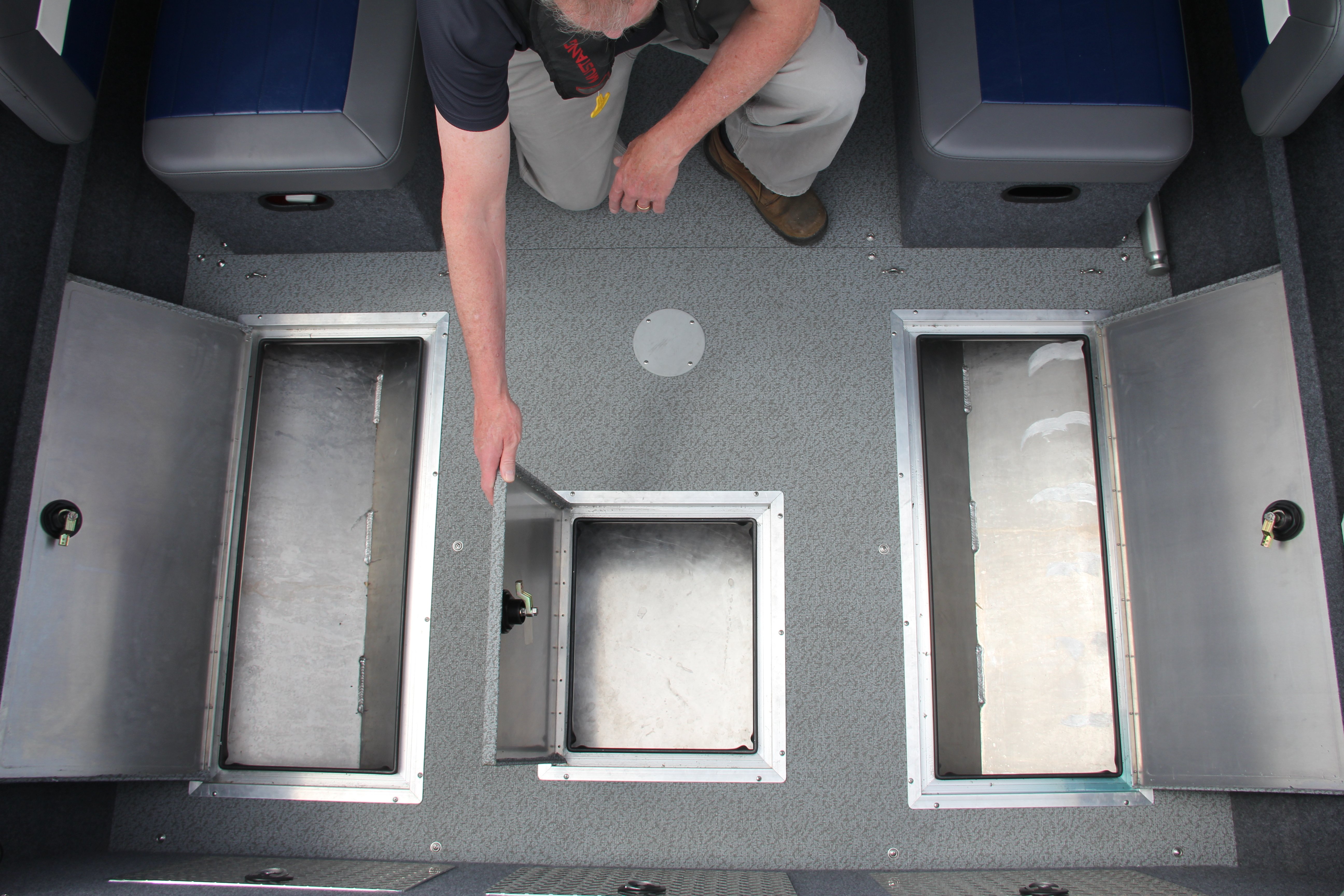

IN-FLOOR STORAGE COMPARTMENTS

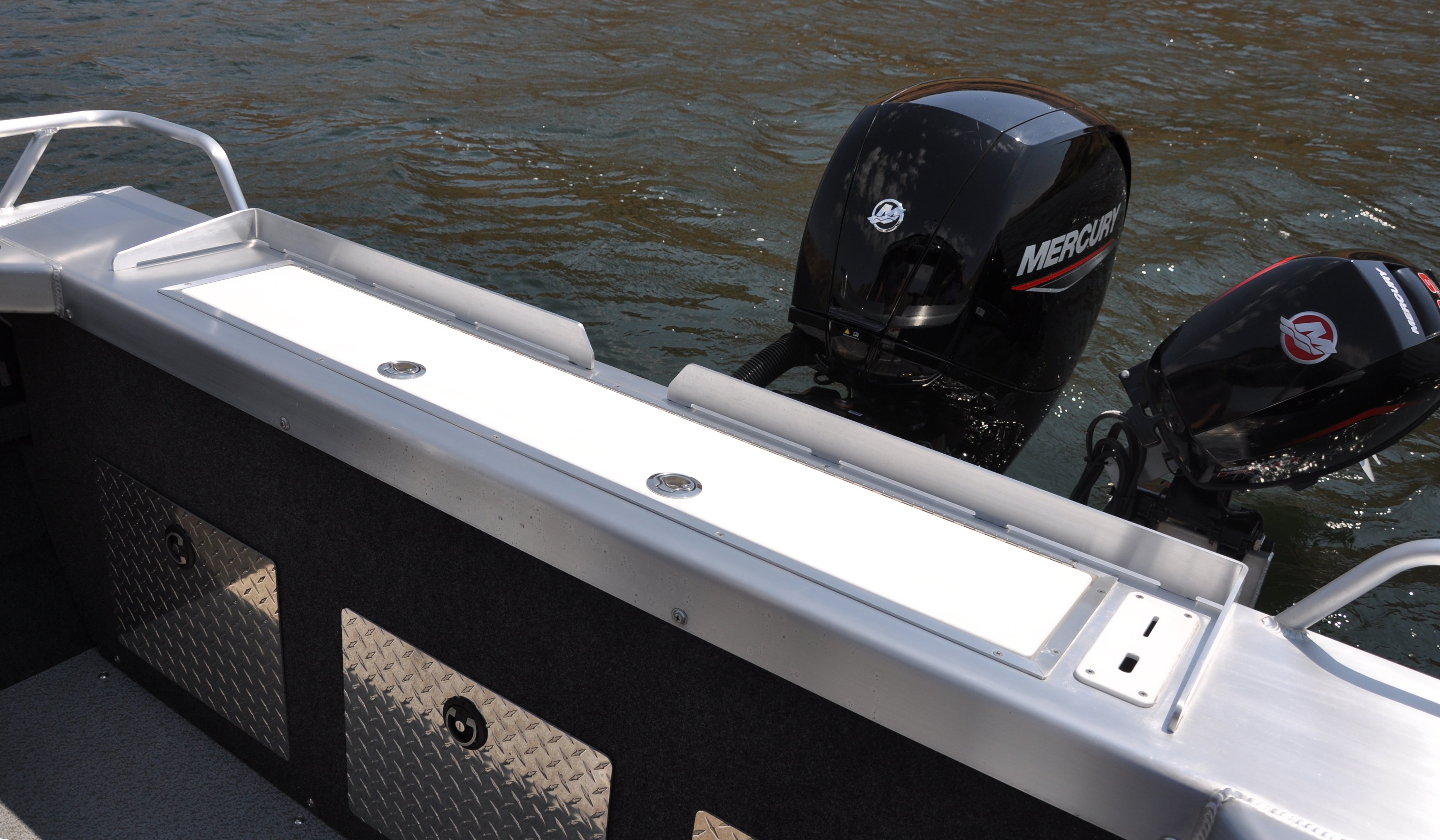

FISHERMAN'S TRANSOM

COMMAND CONSOLE

IN-FLOOR STORAGE COMPARTMENTS

FISHERMAN'S TRANSOM

COMMAND CONSOLE

IN-FLOOR STORAGE COMPARTMENTS

FISHERMAN'S TRANSOM

Gallery (52 images)

MAKE IT YOUR OWN

Customize your 185 Luxor to be the perfect boating experience.

Interior

Seating Options

Upgraded fish seats (helm & passenger)

Fish seat arm rests (PR)

Suspension seat (EA)

Shock absorber seat pedestal (EA)

Smooth Moves seat pedestal (EA)

Heated seat (EA)

Bow folding seat

Fishing seat package w/swivels

Bed rails

Aft storage bench seat cushions

Mechanical

Engine Rigging

Smartcraft gauge upgrade

VesselView® 502 upgrade single engine

Suzuki pre-rig analog 1 eng/1 station

Prop & PDI

Exterior

Top / Cabin

1/2 hardtop

3/4 hardtop

Full hardtop

Hardtop vista windows

Hardtop side-mount rod holders

Hardtop center top-mount rod holders

Stern

6" stern rails w/downrigger mounting pads

Stern rail extensions w/downrigger corner pads

Additional downrigger mounting pads (x2)

Deluxe anglers package

Basic anglers package

Insulated transom fish box

Diamond tread fish box lid

3/4 Platform w/undermount ladder

Welded transom kicker bracket

Welded platform kicker bracket
